The basic working principle of the roller screen is: the particles rotate to a certain height with the screen cylinder, and are thrown down due to gravity, and are filtered through the screen to form screening.
The roller screen is a shaftless transmission in the middle, the power end is supported on the frame by bearings, and the other end is supported on the roller cylinder by supporting wheels. The utility model has the advantages of simple structure, simple operation, and material with different particle sizes can be obtained within a certain range by changing the screen. It is suitable for the separation of different particles.
| 參數(shù) parameter 型號 Model | 滾筒尺寸（mm） Drum size | 產(chǎn)量（t/h） yield | 電機功率（Kw） Motor power | 外形尺寸（mm） Appearance size | |
| 直徑 diameter | 長度 length | ||||
| GS6*30 | φ800 | 3000 | 0.5-1 | 1.5 | 4000*1000*1800 |
| GS8*40 | Φ600 | 4000 | 1-2 | 1.5 | 5000*1200*1800 |
| GS10*30 | Φ1000 | 3000 | 1-3 | 2.2 | 5000*1400*2000 |
| GS12*45 | Φ1200 | 4500 | 3-5 | 3 | 5700*1600*2400 |
| GS15*50 | Φ1500 | 5000 | 5-7 | 5.5 | 6800*1900*2800 |
| GS15*65 | Φ1500 | 6500 | 16-24 | 7.5 | 8300*1900*2800 |
| GS16*60 | Φ1600 | 6000 | 16-24 | 7.5 | 7300*2000*3000 |

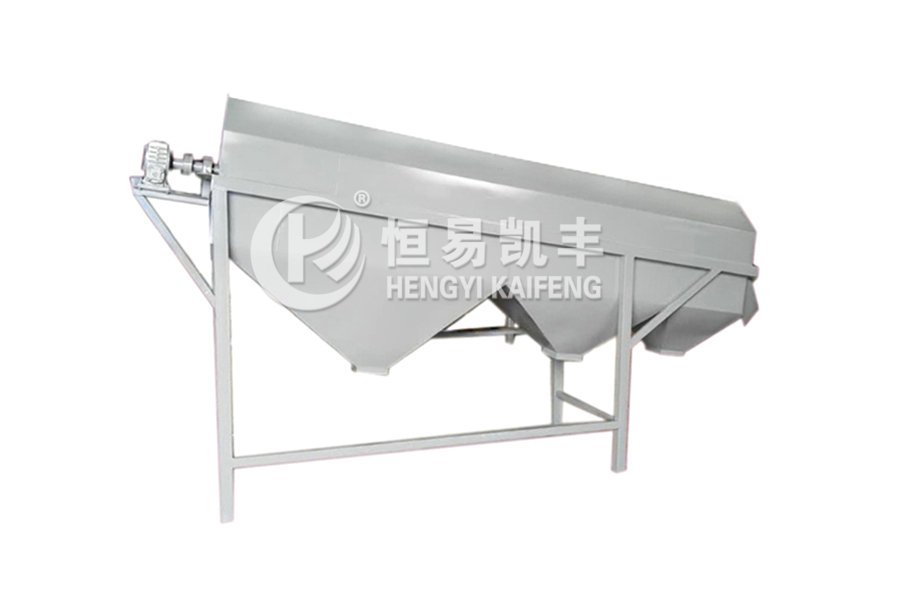

Activated carbon rotary screen
Activated carbon rotary screen 2021-6-25 Read 2399
