Desander

Scan and add WeChat

It is mainly used for the first cleaning of activated carbon particles, removing impurities and stones. It can also be used for the cleaning and selection of grain, feed, chemical industry and medical treatment

icon圖標 Tel：131-5373-6907（Mr. Wei）

icon圖標 Address：Yishui County Economic Development Zone, Jining City, Shandong Province

Information details

除砂機

Desander

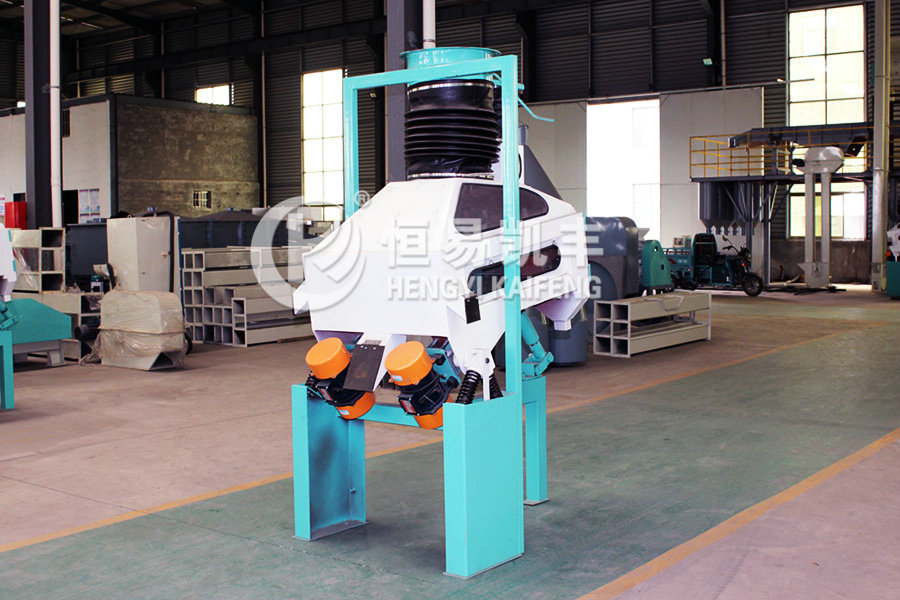

TQSF type gravity grading stone remover uses the combined action of sieving and air flow for grading stone removal

The machine has the characteristics of high production efficiency, convenient maintenance, no dust, low noise and good cleaning effect.

參數 parameter 型號 Model	篩寬 Sieve size	風壓（Pa） Wind pressure	產量（t/h） Output	動力（Kw） Power	吸風量（m3/h） Volume	重量（Kg） Weight	外形尺寸 Outline size
TQSF50	50	＜980	4-6	2*0.25	4000	230	14207801800
TQSF63	63		5-7		4500	280	14508761800
TQSF80	80		7-9		6000	340	145010461800
TQSF100	100		9-11		8000	400	150012461900
TQSF125	125		11-16		10200	500	150014961920
TQSF150	150		12-18	2*0.37	12000	610	150017461800
TQSF180	180		18-23	2*0.37	14000	820	150020461850
