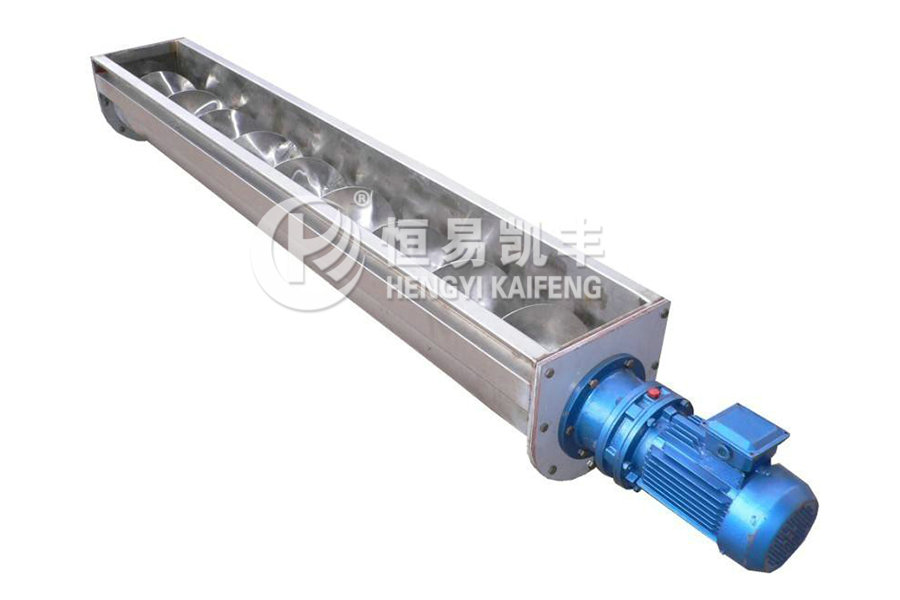

LSS series screw conveyor is mainly used for conveying granular materials and powdery materials. It has the characteristics of simple structure, convenient operation and stable performance. It can feed or discharge materials in the whole working length. It is mainly used for the horizontal transportation of materials in activated carbon, grain, feed and oil enterprises
型號 Model | 轉(zhuǎn)速(r/min) Rotary speed | 輸送量(t/h) | 軸功率(Kw) Shaft power | 外形尺寸(mm) Dimension | |
粉狀 | 顆粒狀 | ||||
LSS16 | 120-550 | 1.6 | 4.6 | 0.75-1.5 | L*320*270 |
LSS20 | 110-550 | 8.2 | 8.2 | 1.5-3.0 | L*350*290 |
LSS25 | 100-550 | 14.6 | 14.6 | 1.5-4.0 | L*360*360 |
LSS32 | 90-550 | 28 | 28 | 3.0-4.0 | L*450*460 |
